JIS F7302 Bronze Angle Valve
Materials of main parts
Body Material: Bronze
Disc Material: Brass
Stem Material: Brass
Bonnect Material: Bronze
Overview
Features:
Corrosion resistant bronze angle valve salt water
High temperature bronze angle valve
JIS valve for steam service
Angle valve for tight space installation

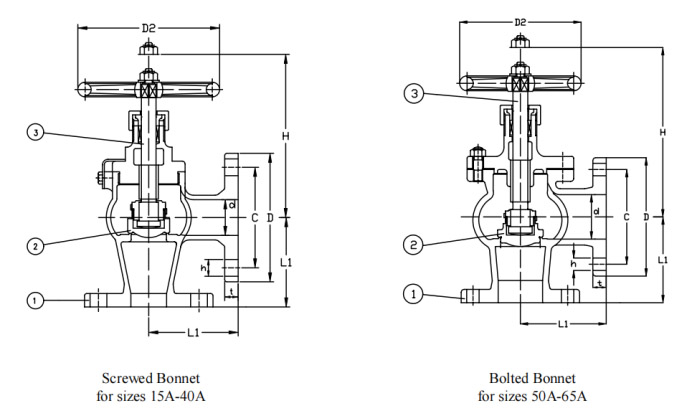

Reference Drawing:
Reference Data:
Type | Size | L | D | C | No. | h | t | H | D2 |
F 7302 5K | 15 | 55 | 80 | 60 | 4 | 12 | 9 | 120 | 80 |
20 | 60 | 85 | 65 | 4 | 12 | 10 | 130 | 100 | |
25 | 65 | 95 | 75 | 4 | 12 | 10 | 145 | 125 | |
32 | 80 | 115 | 90 | 4 | 15 | 12 | 150 | 125 | |
40 | 85 | 120 | 95 | 4 | 15 | 12 | 165 | 140 | |
50 | 100 | 130 | 105 | 4 | 15 | 14 | 200 | 140 | |
65 | 115 | 155 | 130 | 4 | 15 | 14 | 220 | 160 |
