Optional configuration:

Body Material: Bronze or Stainless Steel (SUS304/316/316L)

Temperature Range: -10°C to 200°C (bronze) or -5°C to 250°C (stainless steel)

Model Variations:

Bronze Material: Suitable for standard marine applications, offering basic corrosion resistance

Stainless Steel Material (SUS304/316/316L): Withstands high temperatures (up to 200°C) and provides superior corrosion resistance, suitable for extreme environments

Hydraulic Test:

Valve body: 38kg (1.5PN)

Valve seat: 23kg (1.1PN)

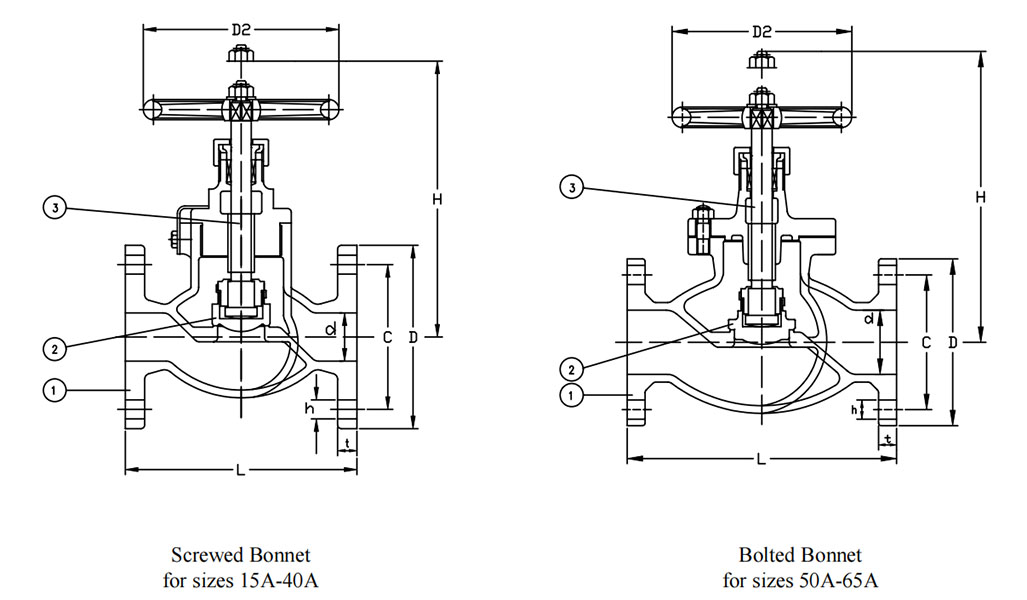

Reference Drawing:

1----Valve Body                                                           2---Valve Disc                                                                           3---Valve Stem
