The JIS F7306 cast iron angle valve is a typical marine angle type stop valve. It is characterized by its sturdy and corrosion-resistant cast iron valve body, the 90-degree angle design that saves space, standardized flange connection, and compliance with strict maritime regulations.

Key Selection and Usage Considerations:

Pressure and Temperature Limitations: This is a low-pressure valve, typically used in PN10/16 level systems. It cannot be used in high-temperature, high-pressure main steam or fuel oil systems. System parameters must be confirmed to be within the valve's rated range during selection.

Media Compatibility: Although resistant to seawater, it is not suitable for strong acids, strong alkalis, or other special chemicals. When used with oily media, the compatibility of the sealing material must be confirmed.

Hydraulic Test

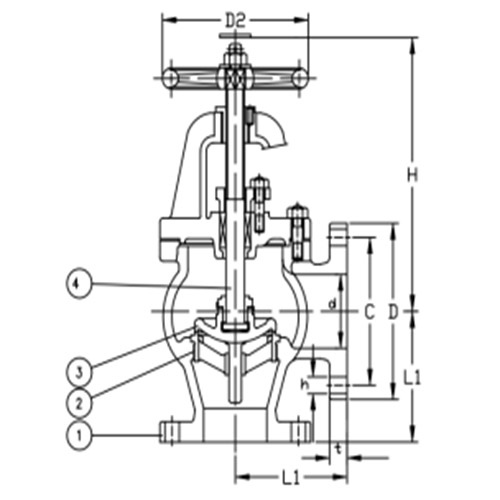

Reference Drawing
