JIS F7334 Hose Valve
Materials of main parts
Body material: Bronze
Disc material: Bronze
Stem material: Brass
Connection material: Bronze
Overview
Feature:
Primarily used to control the flow of media such as freshwater, seawater.
Features corrosion resistance, excellent sealing performance, and flexible operation.
Commonly found in fire protection, water supply.

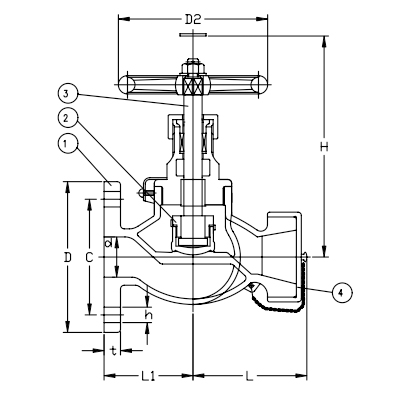

Drawing:
Data sheet:
Type | Size | L | L1 | D | C | No. | h | t | H | D2 | D3 |
5K | 15 | 73 | 50 | 80 | 60 | 4 | 12 | 9 | 129 | 80 | M42*2 |
25 | 78 | 60 | 95 | 75 | 4 | 12 | 10 | 161 | 125 | M42*2 | |
10K | 15 | 73 | 55 | 95 | 70 | 4 | 15 | 12 | 129 | 80 | M42*2 |
25 | 83 | 65 | 125 | 90 | 4 | 19 | 14 | 161 | 125 | M42*2 |
