JIS F7375 Cast Iron Globe Valve (SDNR)

Standard:

JIS F 7375 - Standard for Cast Iron Globe Valves for marine use. Defines design, materials, pressure-temperature ratings, dimensions, and testing.

Type: Globe Valve, Outside Screw & Yoke (OS&Y) - Rising Stem. SDNR indicates Screwed, flaNged, or thReaded end connections (specific type chosen per order).

Pressure Rating:

Nominal Pressure JIS 10K (Equivalent to ~PN16/Class 150). Suitable for maximum working pressure of 1.0 MPa (10 kgf/cm²) at 120°C.

Overview

Advantages

• Good Throttling: Excellent for regulating flow.

• Positive Shut-off: Provides reliable sealing in the closed position.

• Renewable Disc: Lowers long-term maintenance costs.

• Rising Stem: Clear visual position indication.

• Standardized: JIS compliance ensures easy integration into existing Japanese-standard or similar piping systems.

Disadvantages & Typical Applications

• High Pressure Drop: The tortuous flow path causes significant resistance, leading to energy loss.

• Higher Operating Force: Requires more torque to operate compared to gate valves, especially in larger sizes.

• Heavier and Bulkier: Compared to other valve types of the same size.

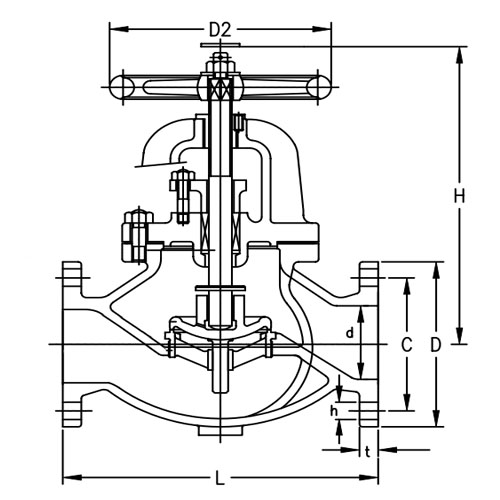

Drawing

Elementary Dimensions

Size	L	D	C	No.	h	t	H	D2	Kg
050	220	155	120	4	19	20	285	160	19.9
065	270	175	140	4	19	22	310	200	28.7
080	300	185	150	8	19	22	320	200	32.4
100	350	210	175	8	19	24	370	250	48.7
125	420	250	210	8	23	24	420	280	73.1
150	490	280	240	8	23	26	470	315	104
200	570	330	290	12	23	26	555	355	162
250	740	400	355	12	25	30	680	450	304
300	840	445	400	16	25	32	770	500	458
